RG-03 M Complete Resonator System with Pickup, Powered Condenser Mic and 2 Channel Preamp for Dobro-style Spider Bridge Guitars

Designed for Dobro style, spider-bridged, instruments, the RG-03M is an easily installed, non-invasive, combination of an interior mounted powered condenser mic with the proven RG-03 pickup. The combination delivers a more rounded, fuller sound with good feedback rejection.

In addition to the internally mounted powered condenser microphone, a new 2 channel Mini Pre 2 outboard belt clip preamp powers the mic and preamps both signals.


Sandarac Ltd. is the registered distributor for Schatten Design Acoustic Pickups in the UK and Ireland. Trade enquiries welcome. Please contact us for details.


£0.00
£273.00

QTY

You’ll earn 0 reward points with this purchase.

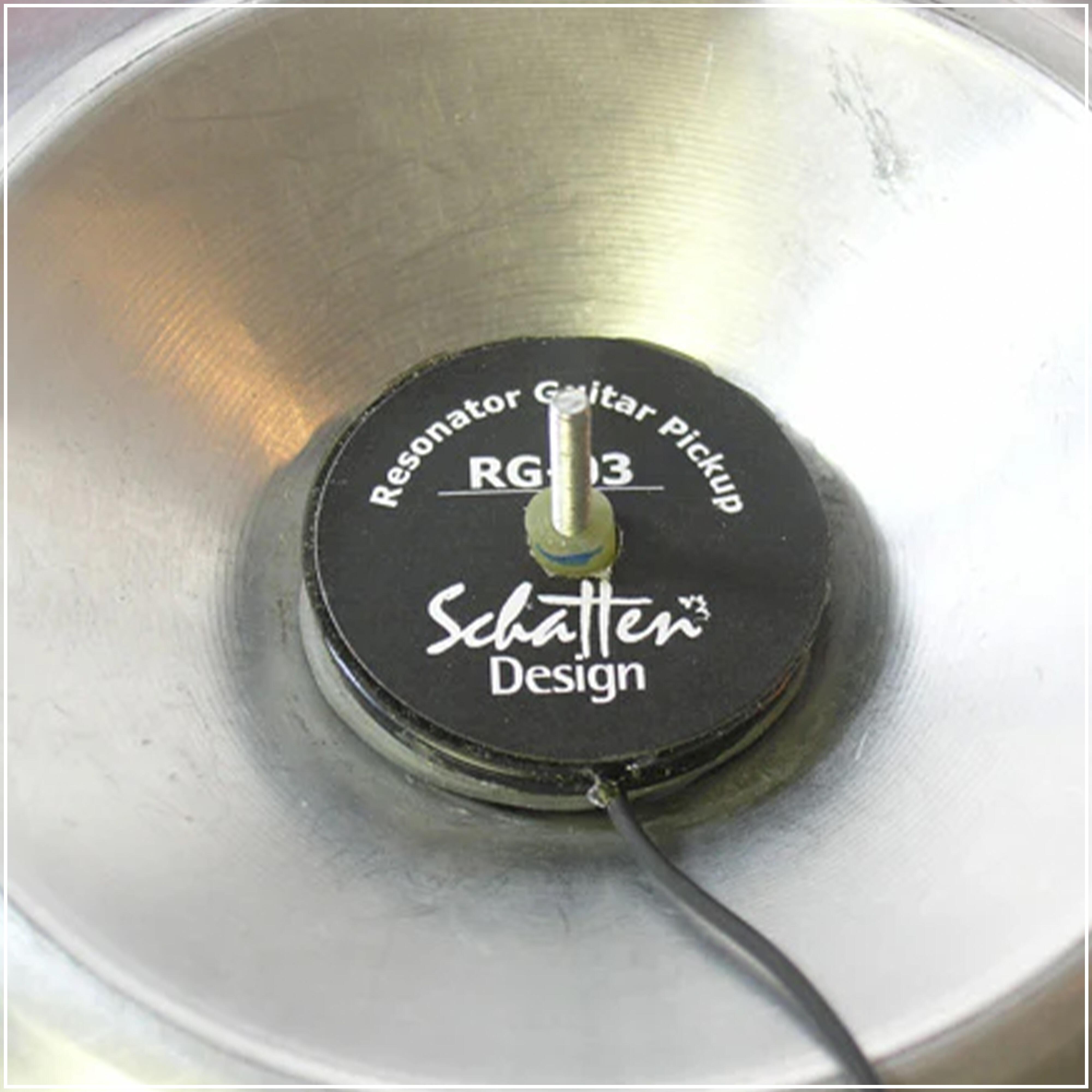

The RG-03 pickup sensor is installed on the underside of the resonator cone.

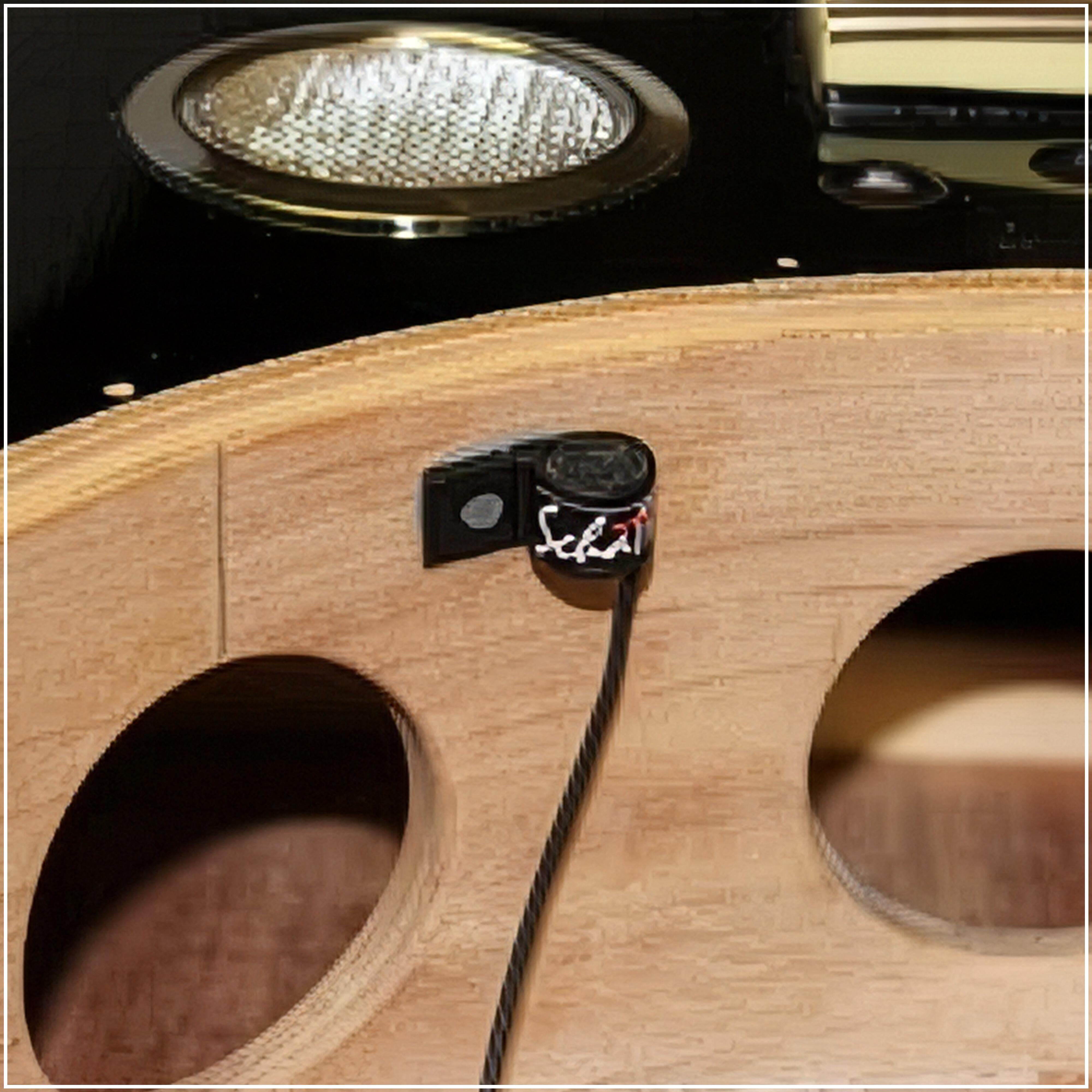

The M powered condenser mic attaches to the well wall with the special mounting putty or with one of the supplied 3M VHB adhesive pads. The microphone mounting also has a through hole so that it can be attached to the well wall with a screw, if desired.

The Mini Pre 2 is a two channel outboard belt clip preamp. Channel One is used to preamp the RG-03 piezo sensor. Channel Two provides both the power for the condenser mic and preamps the mic signal as well. Input into the Mini Pre 2 is via a stereo 1/4" jack. Output from the Mini Pre 2 is via a mono 1/4" jack.

The RG-03M system comes prewired to an endpin jack. This jack may be mounted through the end block of an instrument, providing a strap button, or it may be used as a standard output jack and mounted through the side of an instrument. If you don't want to drill any visible holes in your instrument, the endpin jack can also be used as a 'hanging jack' and mounted hanging from the existing strap button. The output from the jack is stereo (2 separate signals) and an 18" long stereo 1/4" cable is provided to take the signals from the output jack to the Mini Pre 2.

RG-03 M and M Kit Installation Instructions
