Mini Pre 2 Two Channel Preamp

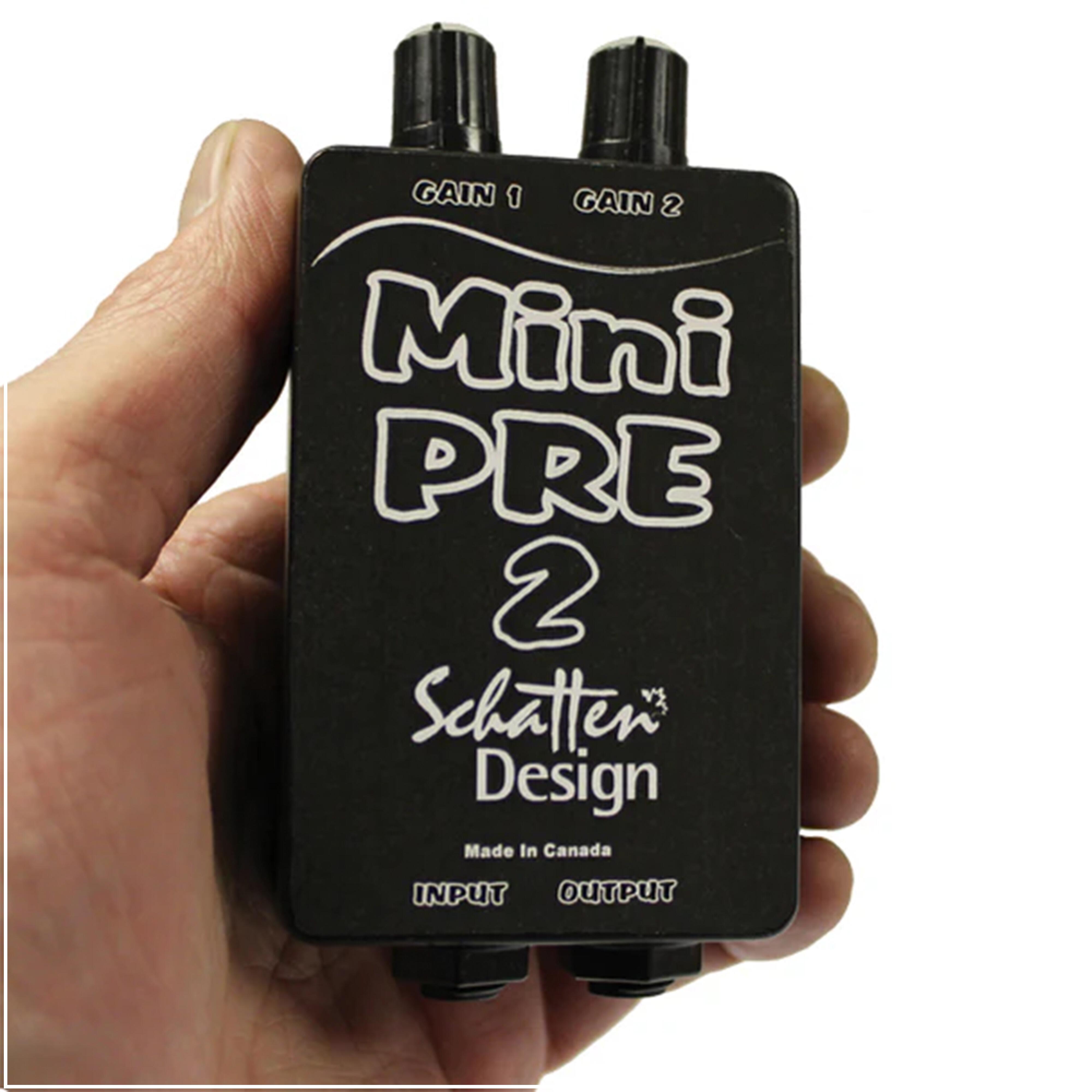

The Mini Pre 2 is a compact two channel preamp. It is only 1 inch thick, 2 inches wide, and a touch over 3 inches in length (25mm x 50mm x 80mm). Weight is 4.5 ozs. (125 grams) with a battery. Ships with belt clip.
Channel one will run a pickup. Channel two can run either a pickup or a powered condenser microphone.
£0.00
£117.00
Specifications:
Input - 1/4" Stereo TRS into 2 separate channels. If a 1/4" Mono cord is plugged into the input, then only Channel One will operate.
Output - 1/4" Mono
Input Impedance - Each channel up to 10 MOhm
Output Impedance - Less than 3.5 kOhm
Battery Life - 9 volt alkaline - 1300 hours
Trim pots on the circuit board for setting preamp input gain from 0 to 12 db for each channel.
